TG&V cladding

Get your instant quote

Tongue and groove with a v-joint is the most popular profile of contemporary timber cladding used in the UK; primarily because of its versatility. It can be installed vertically, horizontally or even diagonally to create a modern finish.

TG&V cladding

TG is the abbreviation for tongue and groove which refers to the interlocking edge of the boards. TG&V refers to the v-joint of the finished profile once two boards are inter-locked.

Tongue and groove cladding is one of the most versatile profile types available because of its wide range of uses including gates, garden screens, fencing and cladding.

The interlocking nature of tongue and groove boards make them easy to fit and weatherproof.

A notable downside of tongue and groove cladding is the difficulty of removing or replacing boards once in place.

Technical information
Profile name TG&V
Woods British Cedar
Canadian Cedar
Finish Machined
Appearance Traditional / Modern
Orientation Vertical, horizontal & diagonal

British Western Red Cedar

TG&V profile
in British Cedar wood
TG&V profile in British Cedar wood
Widths Face Cover Lengths Depths
40mm 30mm 2.4 & 3.6m 18mm
65mm 55mm 2.4 & 3.6m 18mm
90mm 80mm 2.4 & 3.6m 18mm
140mm 130mm 2.4 & 3.6m 18mm

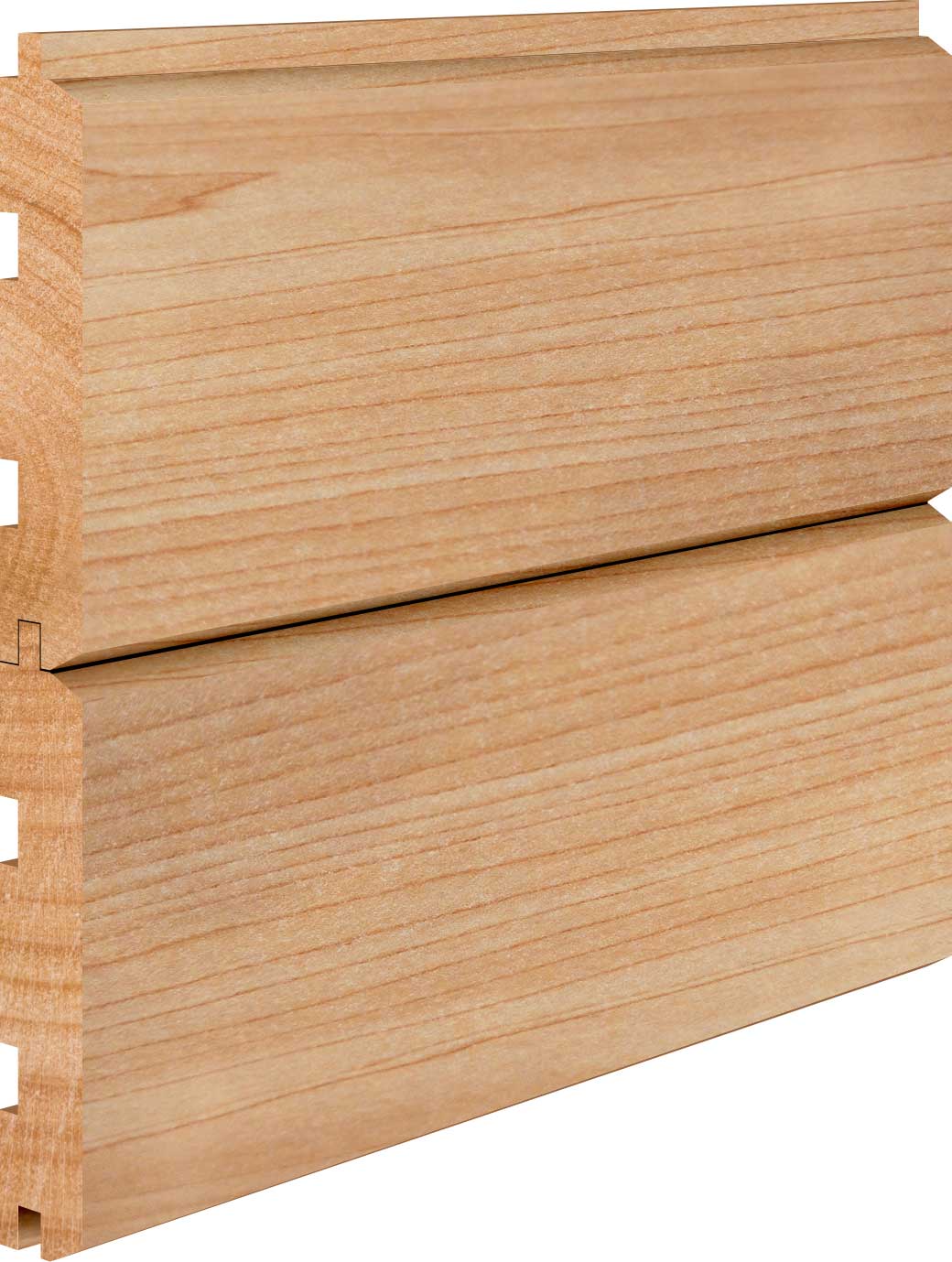

Illustration shows TG&V cladding profile in British Cedar wood at 140mm width. Not to actual scale.

Canadian Western Red Cedar

TG&V profile
in Canadian Cedar wood
TG&V profile in Canadian Cedar wood
Widths Face Cover Lengths Depths
44mm 34mm 1.83 to 4.9m 18mm
69mm 59mm 1.83 to 4.9m 18mm
94mm 84mm 1.83 to 4.9m 18mm
144mm 134mm 1.83 to 4.9m 18mm

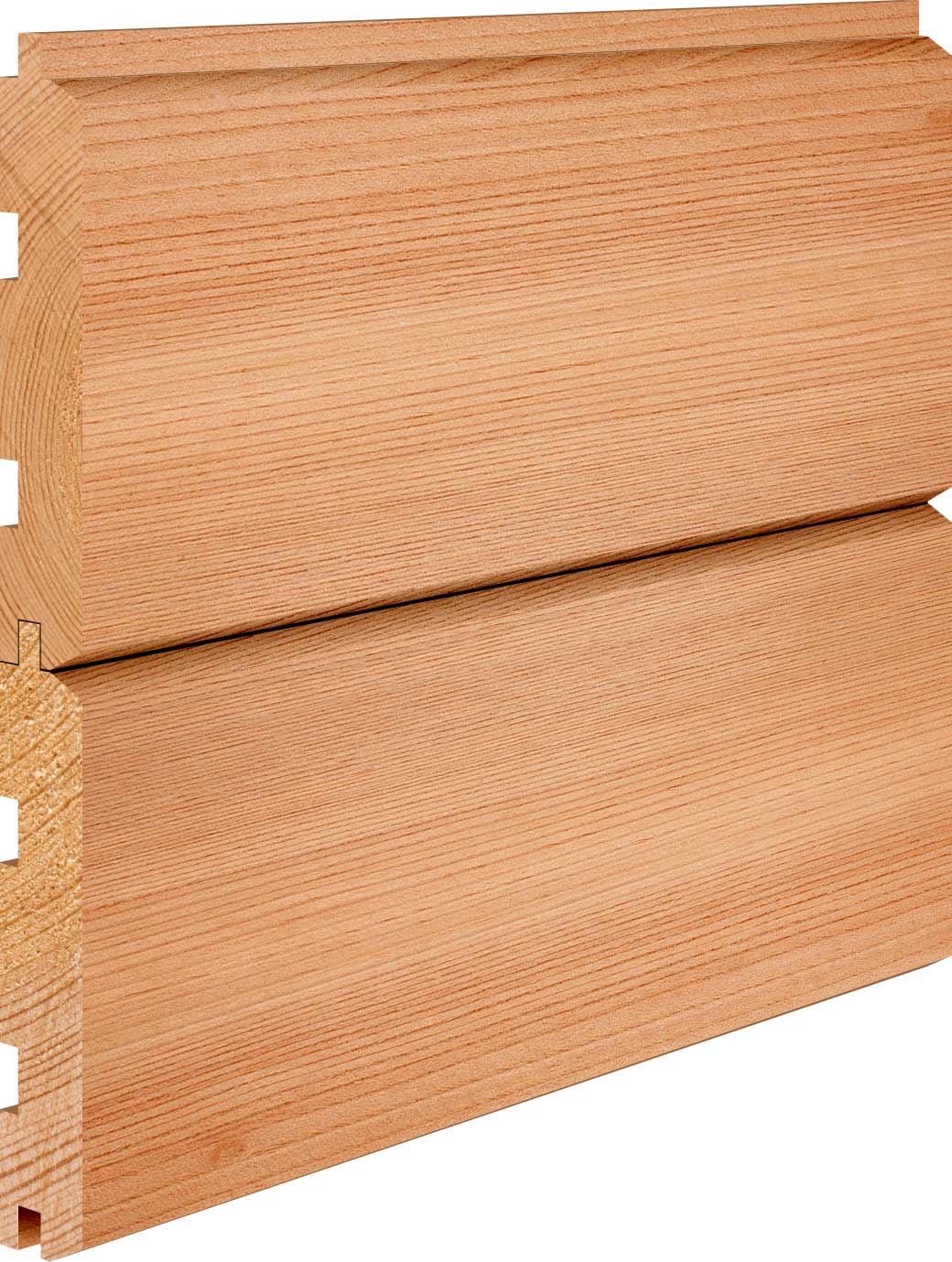

Illustration shows TG&V cladding profile in Canadian Cedar wood at 144mm width. Not to actual scale.
