Feather edge cladding is also known as weather boarding or rebated feather edge boarding. It is fitted horizontally and traditionally used to clad homes or large expanses.
The difference between this profile and the standard Feather Edge is the rebated bottom edge, allowing the board to sit slightly closer to the wall and more flush with the other boards.
Rather than splitting boards into two feather edge rough sawn lengths, we machine a full board depth that is slightly curved to interlock for optimal weatherproofing and ease of fitting.
| Profile name | Rebated Feather Edge |
|---|---|
| Woods | British Cedar Canadian Cedar |
| Finish | Machined |
| Appearance | Traditional / Rustic |
| Orientation | Horizontal |
| Widths | Face Cover | Lengths | Depths |
|---|---|---|---|
| 40mm | 30mm | 2.4 & 3.6m | 18mm |
| 65mm | 55mm | 2.4 & 3.6m | 18mm |
| 90mm | 80mm | 2.4 & 3.6m | 18mm |
| 140mm | 130mm | 2.4 & 3.6m | 18mm |
Illustration shows Rebated Feather Edge cladding profile in British Cedar wood at 140mm width. Not to actual scale.
| Widths | Face Cover | Lengths | Depths |
|---|---|---|---|
| 44mm | 34mm | 1.83 to 4.9m | 18mm |
| 69mm | 59mm | 1.83 to 4.9m | 18mm |
| 94mm | 84mm | 1.83 to 4.9m | 18mm |
| 144mm | 134mm | 1.83 to 4.9m | 18mm |

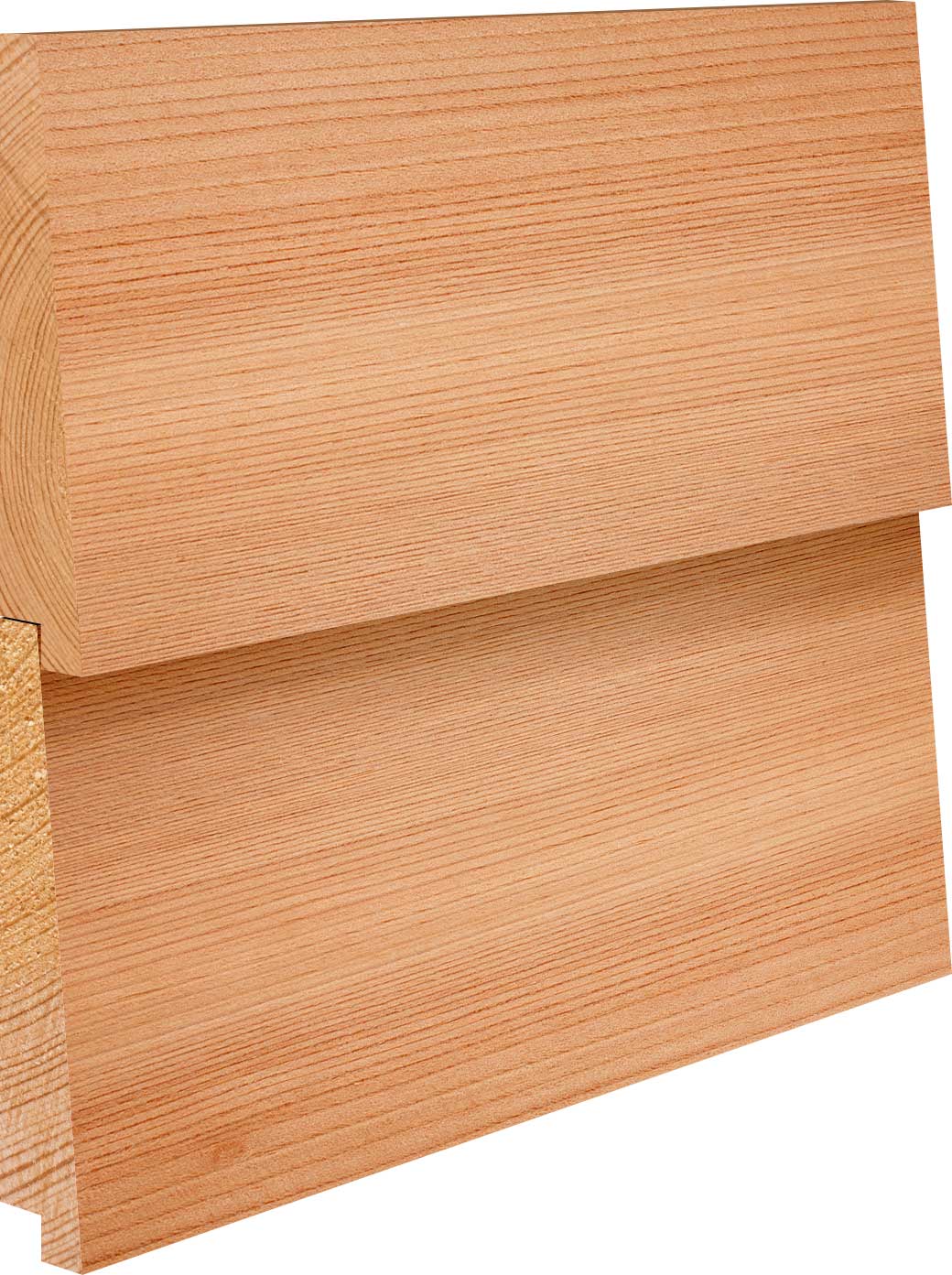

Illustration shows Rebated Feather Edge cladding profile in Canadian Cedar wood at 144mm width. Not to actual scale.
