TG&S Weathered cladding is an alternative to our TG&S cladding. TG&S Weathered provides a 45 degree slope either side, which gives a softer appearance over the right angled edge on TG&S cladding.
TG is the abbreviation for tongue and groove which refers to the interlocking edge of the boards. The interlocking nature of tongue and groove makes them weatherproof and easy to fit, but it also means the boards can be difficult to replace.
Tongue and groove cladding is one of the most versatile profile types available because of its wide range of uses including gates, garden screens, fencing and cladding. It is typically fixed vertically, although often used horizontally as well in addition to mixed orientation cladding to break up a large cladding expanse.
TG&S cladding looks particularly impressive when illuminated at night.
Profile name | TG&S Weathered |
---|---|
Woods | British Cedar Canadian Cedar |
Finish | Machined |
Appearance | Modern |
Orientation | Vertical |
Widths | Face Cover | Lengths | Depths |
---|---|---|---|
40mm | 20mm | 2.4 & 3.6m | 18mm |
65mm | 45mm | 2.4 & 3.6m | 18mm |
90mm | 70mm | 2.4 & 3.6m | 18mm |
140mm | 120mm | 2.4 & 3.6m | 18mm |

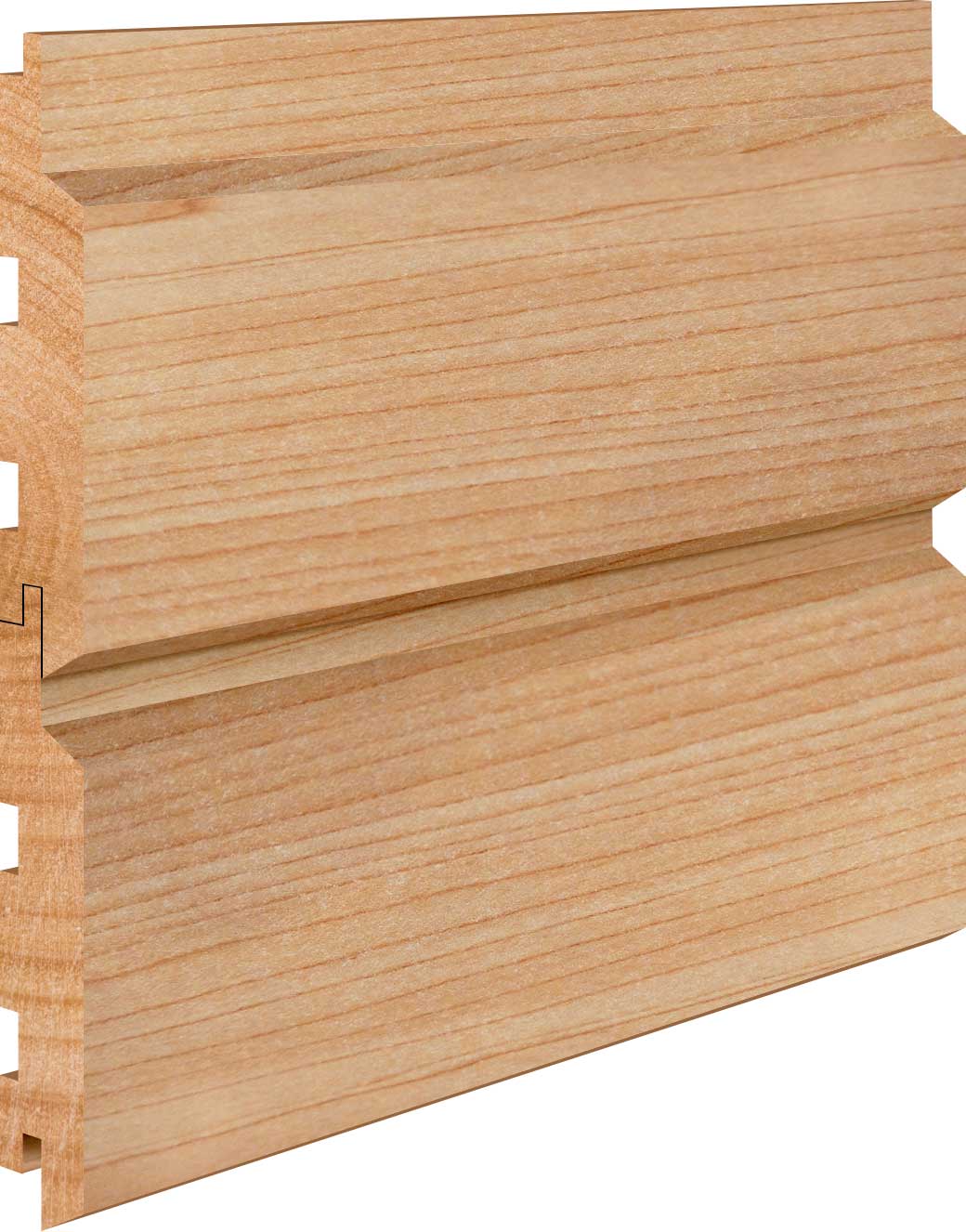

Illustration shows TG&S Weathered cladding profile in British Cedar wood at 140mm width. Not to actual scale.
Widths | Face Cover | Lengths | Depths |
---|---|---|---|
44mm | 24mm | 1.83 to 4.9m | 18mm |
69mm | 49mm | 1.83 to 4.9m | 18mm |
94mm | 74mm | 1.83 to 4.9m | 18mm |
144mm | 124mm | 1.83 to 4.9m | 18mm |

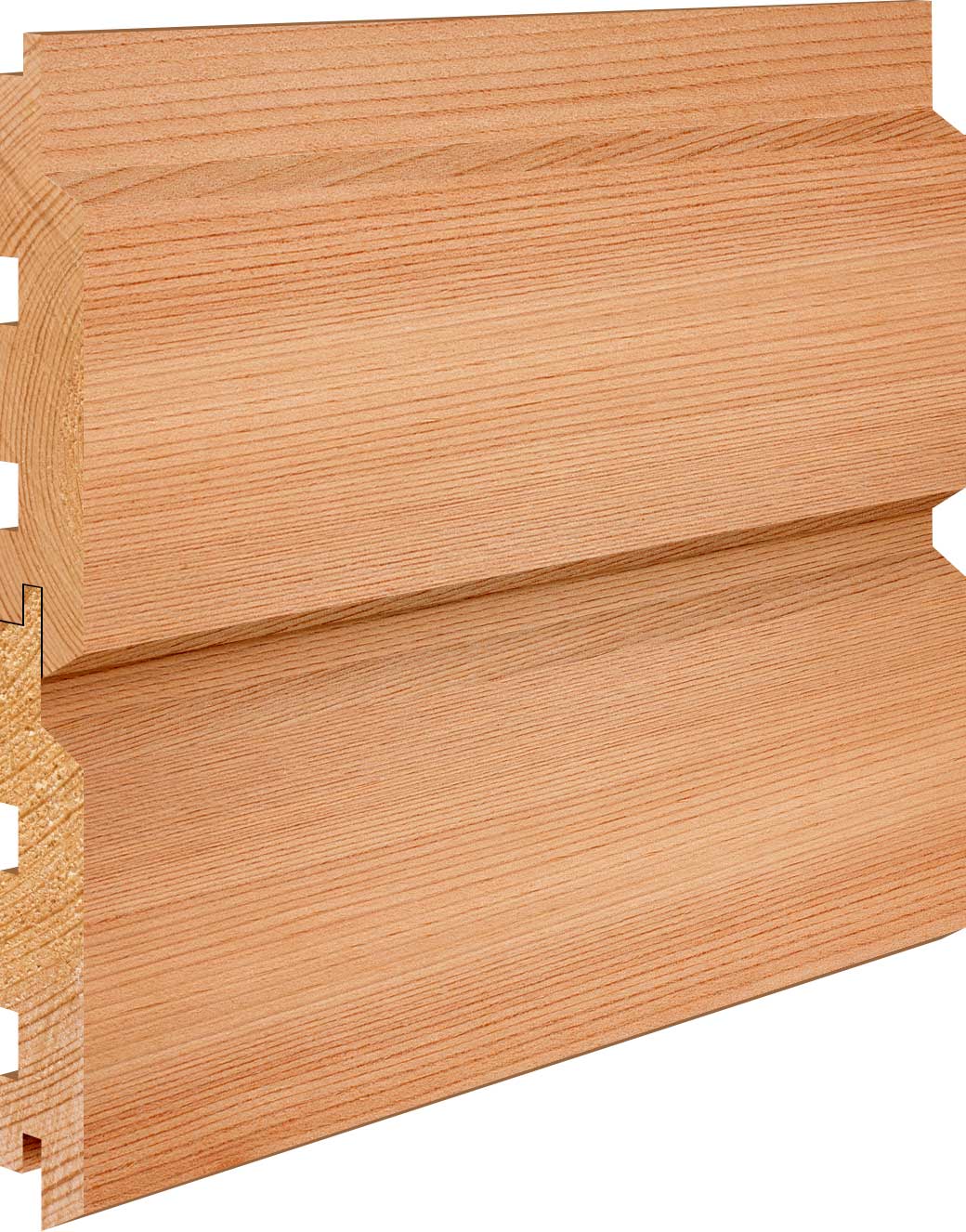

Illustration shows TG&S Weathered cladding profile in Canadian Cedar wood at 144mm width. Not to actual scale.
